| Element | Content(%) |
|---|---|
| Ti | Remaining |
| Al | 2.5-3.5 |
| V | 2.0-3.0 |
| Fe | ≤0.25 |
| O | ≤0.15 |
| C | ≤0.08 |
| N | ≤0.03 |
| H | ≤0.015 |
| Each one retained | ≤0.1 |
| Total remaining | ≤0.4 |
Titanium Grade 9 (Ti-3Al-2.5V) is a near-alpha titanium alloy (consisting of an alpha phase and a small amount of beta phase)
The aluminum content (2.5–3.5%) stabilizes the alpha phase and enhances heat resistance, while the vanadium content (2.0–3.0%) retains the beta phase and improves cold formability. It is formable at room temperature and exhibits excellent weldability. Compared to high-strength titanium alloys (such as Grade 5/Ti-6Al-4V), Grade 9 has lower aluminum and vanadium content; while its strength is slightly lower, it offers superior ductility and weldability, making it particularly suitable for applications such as thin-walled tubing and heat exchangers.
The chemical composition of Titanium Grade 9 is designed to provide a balance of moderate strength, excellent workability, and corrosion resistance, leading to widespread use—especially in the field of tubing.
| Element | Content(%) |
|---|---|
| Ti | Remaining |
| Al | 2.5-3.5 |
| V | 2.0-3.0 |
| Fe | ≤0.25 |
| O | ≤0.15 |
| C | ≤0.08 |
| N | ≤0.03 |
| H | ≤0.015 |
| Each one retained | ≤0.1 |
| Total remaining | ≤0.4 |

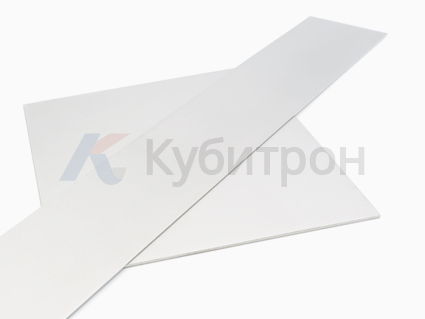

| Product form | Annealed sheet | Cold-rolled pipes | Welded joints |
|---|---|---|---|
| Tensile strength (MPa) | 620-690 | 750-820 | 580-650 |
| Yield strength (MPa) | 530-600 | 680-750 | 500-570 |
| Fatigue strength (10⁷ cycles) | 350-400 | 400-450 | 300-350 |
| Anisotropy coefficient | 1.05-1.15 | 1.15-1.25 | - |
