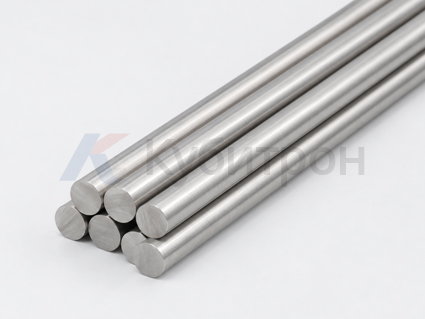

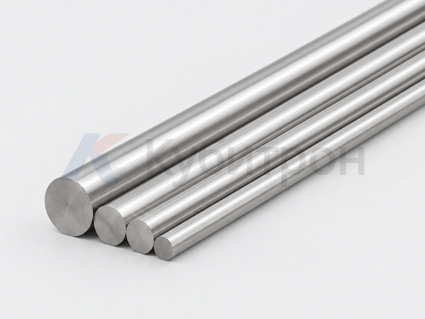

Niobium-47% Titanium alloy rod is a high-performance binary alloy composed primarily of niobium (Nb) and titanium (Ti)—commonly referred to as Nb-47Ti, NbTi, or 53Nb47Ti. Characterized by excellent ductility, good machinability, and outstanding low-temperature superconducting properties, it is currently one of the most widely used and mature low-temperature superconducting alloy materials.
Nb53Ti47 alloy bars are typically manufactured using processes such as vacuum melting, forging, rolling, heat treatment, and precision machining. They are available in various diameters, lengths, and surface finishes, and can also be custom-made according to customer drawings or technical specifications. The material exhibits good compositional homogeneity and process stability, making it suitable as a raw material for the production of superconducting wire. In addition, it can be processed into components required for scientific research, cryogenic technology, and specialized industrial equipment.
Nb-Ti alloys represent a well-established class of low-temperature superconducting materials. Typical Nb-Ti alloys have a superconducting transition temperature of approximately 9.6 K at atmospheric pressure, which is why they are widely used in superconducting magnets and related cryogenic equipment.
Nb53Ti47 rods are the most important raw material for the production of NbTi superconducting wires. They can be further processed into superconducting wires through subsequent processing, heat treatment, and drawing.
The rods are used to manufacture superconducting wires, which are ultimately used in superconducting magnets and other equipment.
NbTi is an important material system for superconducting magnetic systems, such as MRI machines.
Including: particle accelerators, accelerator magnets, superconducting magnets, and beam transport systems.
NbTi has long been a key material for superconducting magnets in particle accelerators.
Applications include: cryogenic systems, liquid helium systems, cryogenic instruments, and low-temperature research equipment.
| Diameter (mm) | Length (customizable) |
|---|---|
| Ø5 mm | Customized according to customer requirements |
| Ø10 mm | Customized according to customer requirements |
| Ø20 mm | Customized according to customer requirements |
| Ø30 mm | Customized according to customer requirements |
| Ø50 mm | Customized according to customer requirements |
