Compared to pure niobium, adding zirconium to niobium-1-zirconium (Nb-1Zr) rods improves the material’s strength and stability at high temperatures, while maintaining good ductility, corrosion resistance, and machinability.
Nb-1Zr rods are suitable for high-temperature, vacuum, aerospace, and specialized engineering applications. They can be used to manufacture various high-temperature structural components and precision parts using turning, milling, grinding, and other machining methods.
ASTM B392 is the applicable standard for bars, rods, and wire made of niobium and niobium alloys, including two Nb-1Zr grades: R04251 Type 3 and R04261 Type 4.
It can be used to manufacture supports, connectors, and other high-temperature components for vacuum furnaces, high-temperature furnaces, and heat treatment equipment.
It is used in the manufacture of high-temperature structural components, specialized engine parts, heat-shielding components, and other parts that require high heat resistance.
Thanks to the excellent corrosion resistance of niobium alloys, they can be used to manufacture components for equipment operating in specific corrosive environments.

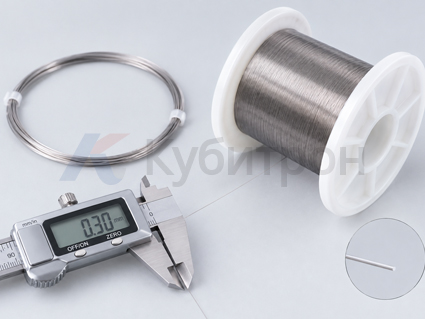

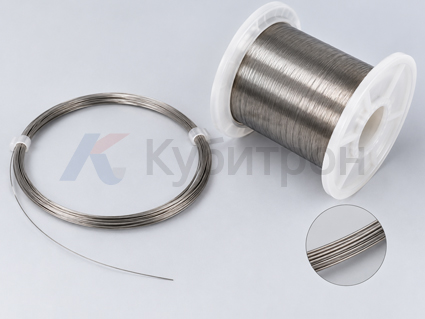

Nb-1Zr wire can be used to manufacture key metal components for high-pressure sodium lamps.
| Diameter (mm) | Length (customizable) |
|---|---|
| Ø3.175mm | Customized according to customer requirements |
| Ø6.35mm | Customized according to customer requirements |
| Ø12.7 mm | Customized according to customer requirements |
| Ø25.4 mm | Customized according to customer requirements |
| Ø50.8mm | Customized according to customer requirements |
| Ø63.5 mm | Customized according to customer requirements |
| Mechanical Properties | Nb-1Zr |
|---|---|
| Tensile Strength, min. | 195 MPa |
| Yield strength, 0.2% offset, min. | 125 MPa |
| Extension, diameter 3.18 – 63.5 mm | 20% min. |
| Condition | Annealed, ≥90% recrystallized |
| Standard | ASTM B392 |
| UNS | R04251 / R04261 |
